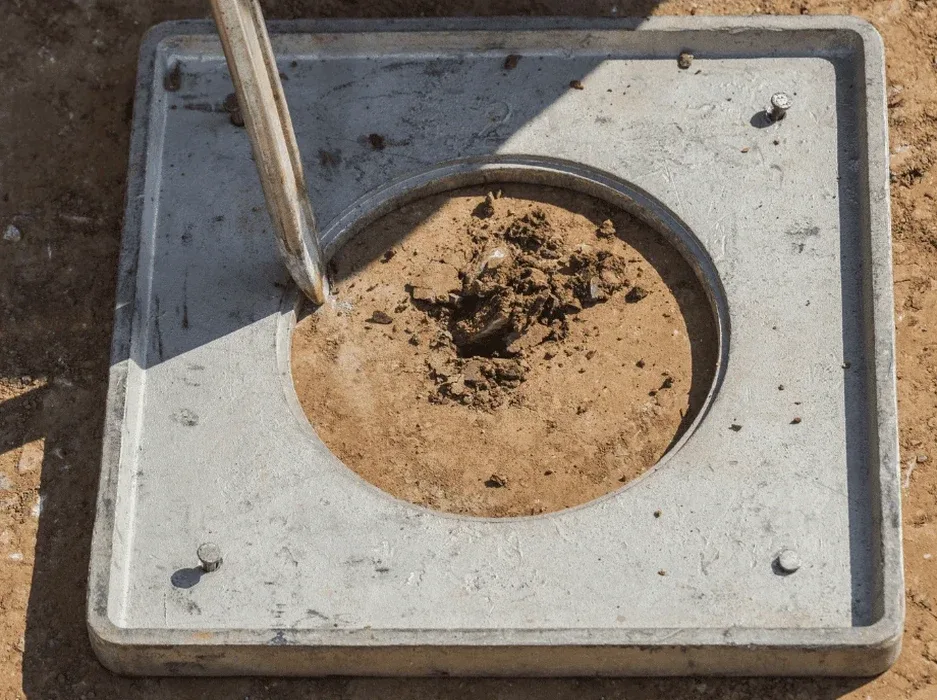

Lethbridge sits at an elevation of 910 meters above sea level, carved by the Oldman River into a landscape of deep coulees and expansive prairie uplands. The city records over 320 days of sunshine a year, yet the subsurface tells a more complicated story when seismic loads enter the picture. Liquefaction potential in Lethbridge is not an abstract concept; it is a practical concern for any engineer working in the saturated silts and fine sands deposited along the river valley. The 2015 edition of the National Building Code of Canada (NBCC) places southern Alberta in a seismic zone where site-specific analysis is no longer optional for major structures. Our team applies cyclic stress ratio evaluations and in-situ penetration data to deliver a soil liquefaction analysis that informs foundation design, not just a checkbox report. We combine this with MASW surveys to map shear wave velocities across the site, and when access permits, we correlate findings with CPT testing to develop a high-resolution stratigraphic profile.
A soil with 35 percent fines content may look stable under static load and still liquefy within 15 seconds of strong shaking — the index tests tell the real story.
Relevant standards
NBCC 2020 — National Building Code of Canada, seismic hazard provisions, CSA A23.3 — Design of concrete structures, seismic detailing requirements, ASTM D1586 / D6066 — Standard test method for SPT and energy measurement, ASTM D5778 / D7400 — Electronic friction cone and piezocone testing (CPTu), Youd et al. (2001) — Summary of liquefaction evaluation procedures (NCEER/NSF)
Quick answers
Does Lethbridge really need liquefaction analysis? It is not Vancouver or Tokyo.
Yes. Although Lethbridge is not in a high-seismicity zone like coastal British Columbia, the NBCC 2020 assigns a non-negligible seismic hazard to southern Alberta. The real issue is the local geology: saturated loose sands in the Oldman River valley can liquefy at moderate ground accelerations. A PGA of 0.05g to 0.10g can be enough for susceptible soils. We have measured SPT N-values below 10 in these deposits. The combination of low-density soil and shallow groundwater makes the risk real, especially for lifeline infrastructure and multi-storey buildings.
How much does a liquefaction analysis cost for a typical Lethbridge site?
For a standard commercial lot requiring two to three boreholes with SPT sampling, laboratory classification testing, and a liquefaction screening report, budgets in Lethbridge typically fall between CA$3,930 and CA$6,080. The range depends on access conditions, depth of investigation, and whether CPTu profiling is added to refine the cyclic resistance ratio. A site-specific quote is provided after reviewing the geodetic location and proposed structural loads.
What is the difference between a screening and a full quantitative liquefaction analysis?
A screening uses simplified criteria — such as the Chinese criteria or Modified Chinese criteria — to declare a soil 'potentially liquefiable' or 'non-liquefiable' based on index properties like fines content and plasticity. A full quantitative analysis goes further: it calculates a numerical factor of safety at each depth using CSR from the design earthquake and CRR from penetration resistance, then estimates post-liquefaction settlements and lateral spreading displacements. We recommend the quantitative approach for any structure with a consequence factor above 'low' per NBCC.
How long does the field investigation and reporting take?
A typical Lethbridge program with two to three boreholes and CPT soundings takes two to three days of field work. Laboratory testing for grain size and Atterberg limits adds five to seven working days. The final liquefaction assessment report, including NBCC-compliant design parameters and mitigation recommendations if required, is delivered within three to four weeks of mobilization, assuming standard turnaround on lab data.
